Multi-Function Furniture Fittings Parts Hardware Mixed Counting Packing Machine
- Model
- ZQS-2013
Item specifics
- product name
- Furniture Fittings Parts Hardware packing machine
- Automatic Grade
- Automatic
- Voltage
- 220V/380V
- Warranty
- 1 year except easy broken parts
Review
Description
Fully Automatic Furniture Hardware parts packing Machine
Features for furniture hardware parts packing machine

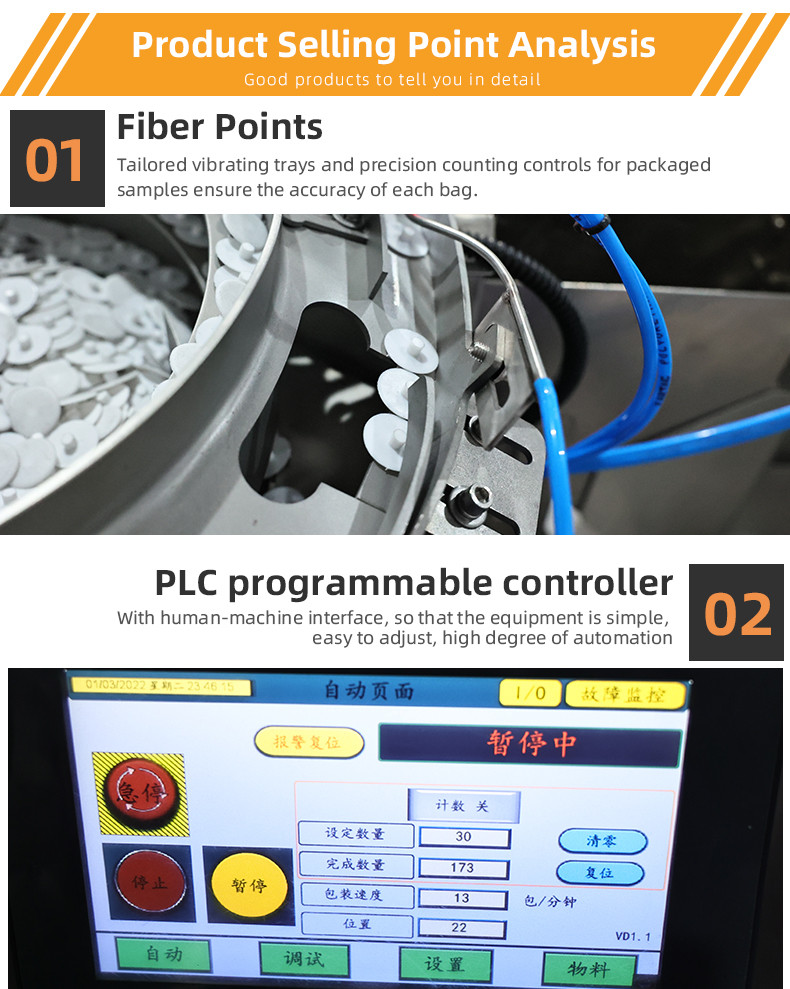

1. According to screw/special parts sample tailored to the vibration plates with a precise count control device, to ensure that every bag is accurate and correct.
2. Adopting a pneumatic structure, the whole machine is more secure, stable, and reliable.
3. Advanced PLC control system and various automatic alarm protection functions, convenient for daily maintenance and reduced wastage.
4. It completes the whole procedure of metering, filling, bagging, date printing, charging(exhausting), and counting
automatically.

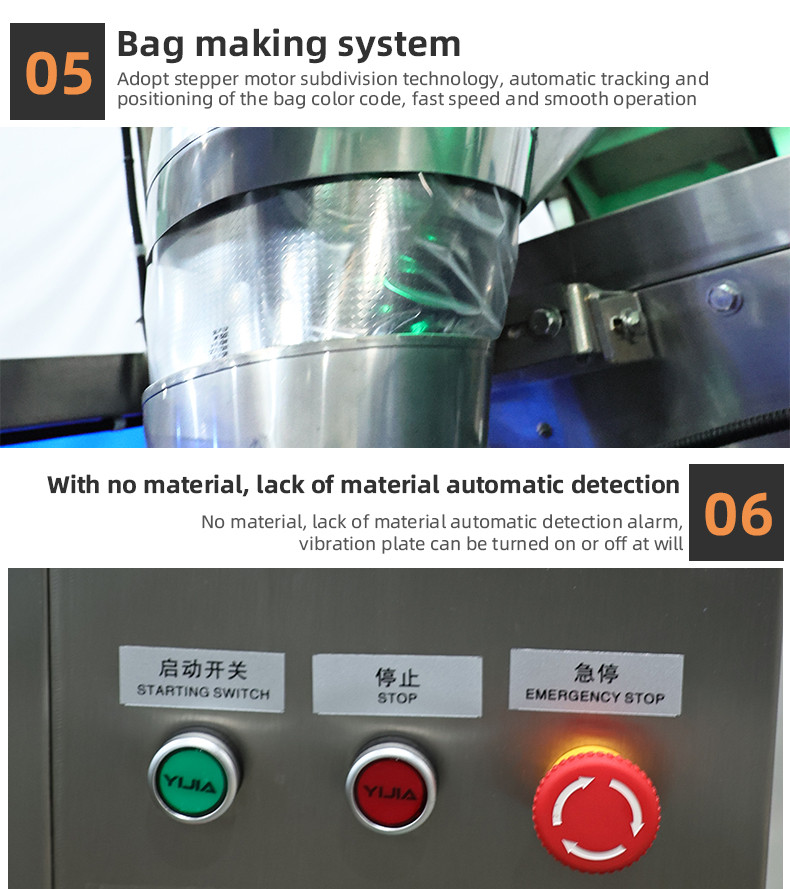

5. Unique design of the packing seal technology, make the sealing nice and strong.
6. Equipped with a chain conveyor trailer, it can be fed manually if the vibration plates are unworkable.
2. Adopting a pneumatic structure, the whole machine is more secure, stable, and reliable.
3. Advanced PLC control system and various automatic alarm protection functions, convenient for daily maintenance and reduced wastage.
4. It completes the whole procedure of metering, filling, bagging, date printing, charging(exhausting), and counting
automatically.
5. Unique design of the packing seal technology, make the sealing nice and strong.
6. Equipped with a chain conveyor trailer, it can be fed manually if the vibration plates are unworkable.

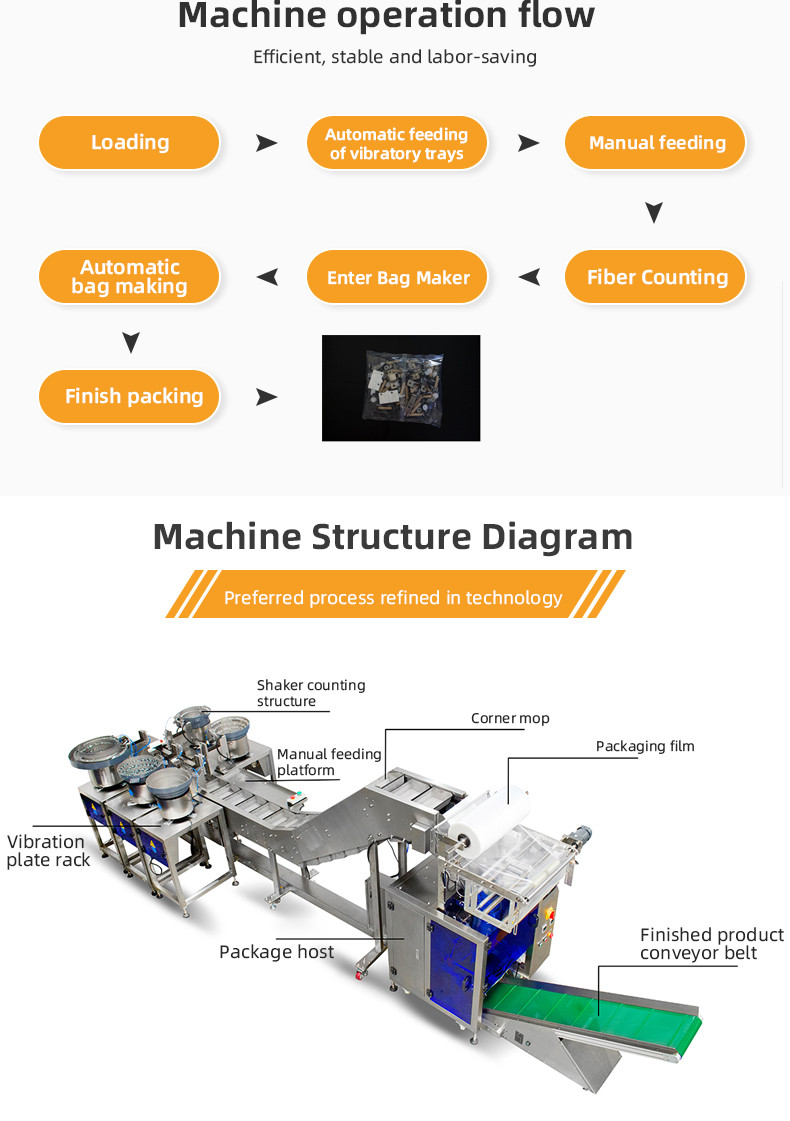

Hardware fittings packing machine is a fully automatic counting and packing machine used to package hardware fittings, such as
nails, screws, nuts, and bolts, into containers or bags. The machine operates by feeding the fittings into a hopper, where they are sorted and counted, before being dispensed into the packaging.
The filled packaging is then sealed and ready for shipment. The use of a hardware fittings packing machine can increase efficiency, reduce waste, and improve product packaging quality.
DEVICE NAME :Counting and packaging machine for furniture hardware parts
SPECIFICATION AND MODEL:ZQS-2013
Dimension:4350*1702*1414mm
POWER SPECIFICATION :220V.50/60HZ
Power:3.0KW
Air Pressue:0.4-0.6MPa
Packing speed:1-40 bags/min
Bag size:L50-180mm W40-140mm
Bag type:Three side seal, back seal
Packaging Materials:CPP.OPP composite membrane material
