Factory supply directly 15-20 pcs per min Semi-automatic Caster Bracket riveting Assembly Machine/Caster bracket riveting machine
- Model
- ZQS-2026
Item specifics
- Name
- caster assembly machine
- Speed
- 15-20 pcs per min
- Control
- PLC and touch screen
- Power
- 220v 50Hz or 60 Hz 3000W
- Weight
- 1200 kg
Review
Description

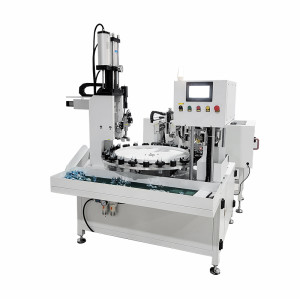

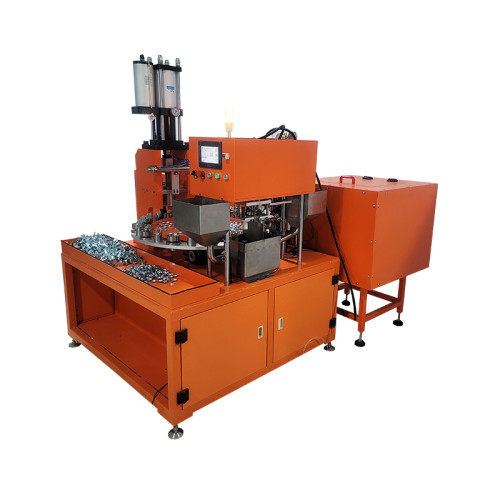

Semi-automatic Caster bracket riveting machine
Speed: 15-20 pcs per min
This machine can help you to rivet the caster bracket , you can check the video first , and welcome to send me your caster parts so that we can help you to check if this machine is ok for your casters . and we can make the customized design based on your any size casters .

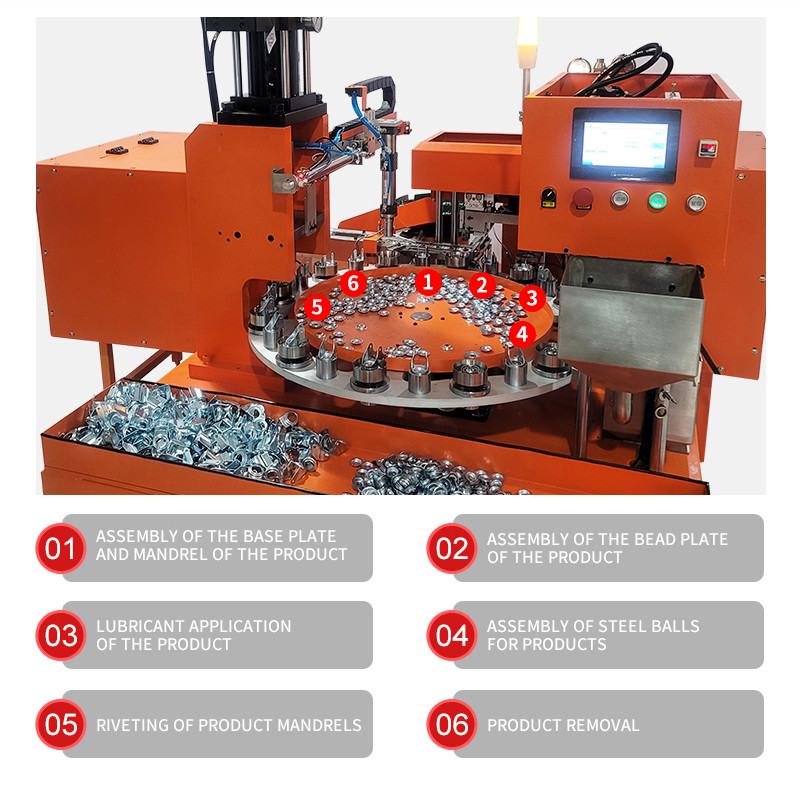

The numbers on the picture represent the 6 stations of this machine, which are:
No. 1 station: responsible for the assembly of the bottom plate and mandrel of the product.
No. 2 station: responsible for the assembly of the large bead plate of the product.
No. 3 : Responsible for the application of butter for the product.
No. 4 station: responsible for the assembly of the steel ball of the product.
No. 5 station: responsible for the riveting of the product mandrel.
No. 6 station: responsible for taking away the product and testing the torque of the bracket.



Introduction of semi-automatic caster assembly machine:
1. The main body of the semi-automatic caster assembly machine adopts Xinjie XD high-end series PLC as the core control, and Weiluntong touch screen realizes the human-computer interaction function. The use of Leisai servo motor and DC asynchronous motor ensures the continuous supply of power. The machine is high-speed and efficient, and the output is stable, and the production can reach 18 per minute!

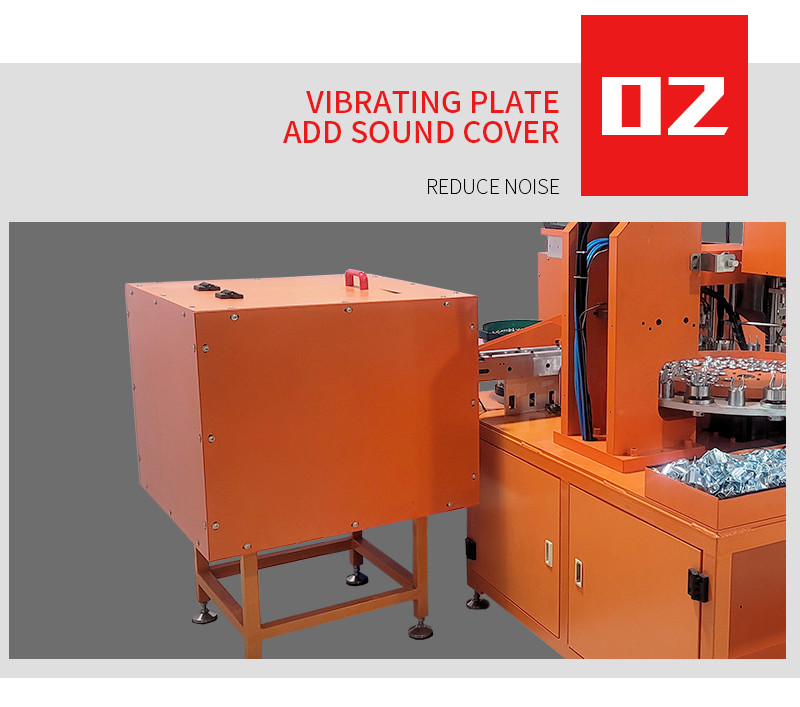

2. The feeding system of the semi-automatic caster assembly machine equipment adopts the method of vibrating plate and direct vibration and motor, uninterrupted and continuous feeding of casters, while stabilizing the feeding, foreign objects can be removed at the same time. The system is regulated smoothly and cooperates with In place, without sloppy at all!
3. The discharge system of the semi-automatic caster assembly machine equipment adopts the two-station discharge method of the screw rod, which accurately cooperates with the torque test motor to complete the torque detection of the product bracket, and can separately place the qualified products and unqualified products detected by the torque detection.

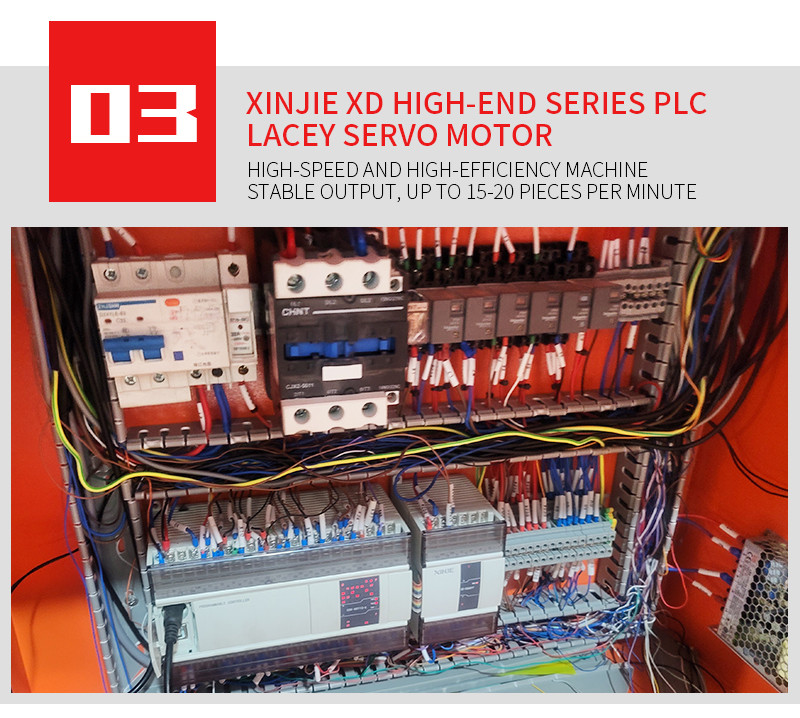

4. The electric control system of the semi-automatic caster assembly machine equipment includes electric control cabinets, operation panels, programmable controllers, touch screens, etc. The electric control cabinets are developed and integrated by our company, and the main internal control components are all famous brand products (Xinjie, Schneider , Chint, Omron, Leisai, Weiluntong, etc.), advanced technology, stable and reliable quality.
