New upgraded steel panel 1+1 Automatic Face Mask Machine Details-9 Servo Motor-150~180PCS/MIN
New upgraded steel panel 1+1 Automatic Face Mask Machine Details-9 Servo Motor-150~180PCS/MIN
New upgraded steel panel 1+1 Automatic Face Mask Machine Details-9 Servo Motor-150~180PCS/MIN
New upgraded steel panel 1+1 Automatic Face Mask Machine Details-9 Servo Motor-150~180PCS/MIN
New upgraded steel panel 1+1 Automatic Face Mask Machine Details-9 Servo Motor-150~180PCS/MIN
Model
ZQS-2009

Item specifics

product name
9 servo motor fully automatic high speed face mask
Marketing Type
New Product 2022
Core Components
PLC
Automatic Grade
Automatic
Voltage
220V
Dimension(L*W*H)
350x250x200cm
Weight
1050kg
Warranty
1 year except easy broken parts
After-sales Service
Video technical support, Online support
Production Capacity
150-180pcs per min
Driver
9 Servo motors+6stepper motors
Ultrasonic
digital
PLC brand
Xinjie
Touch Screen
Multi-Language

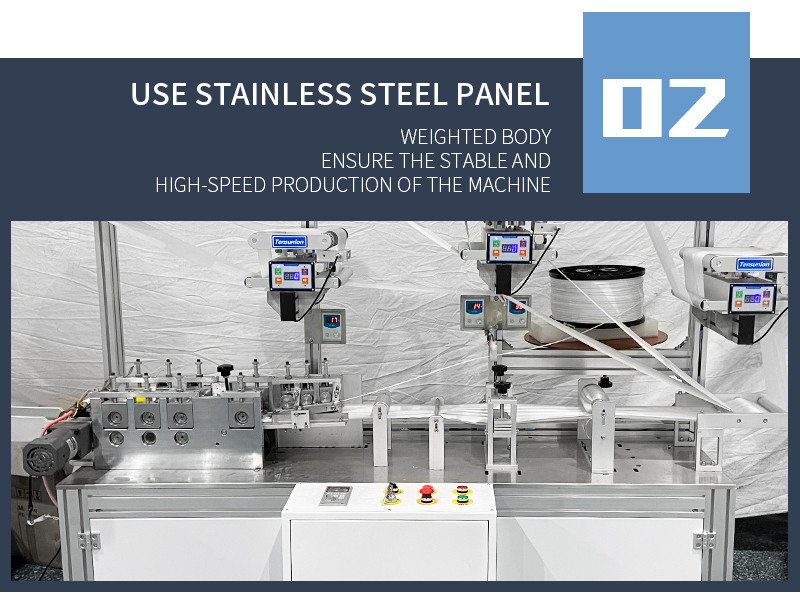

panel
steel

Review

Description

High speed  3ply or 4ply flat mask machine

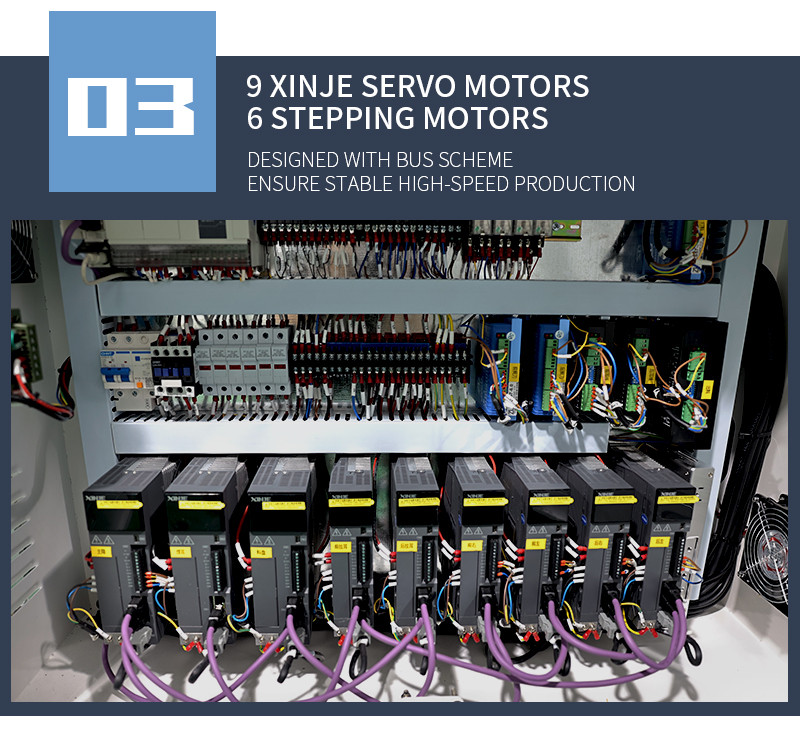

9 servo motors 6 stepper motors
Speed : 130-180pcs per min
3 ultrasound : one is 18KHz 2600W on mask body machine
                       2 sets are 20KHz 2000W on ear loop welding machine

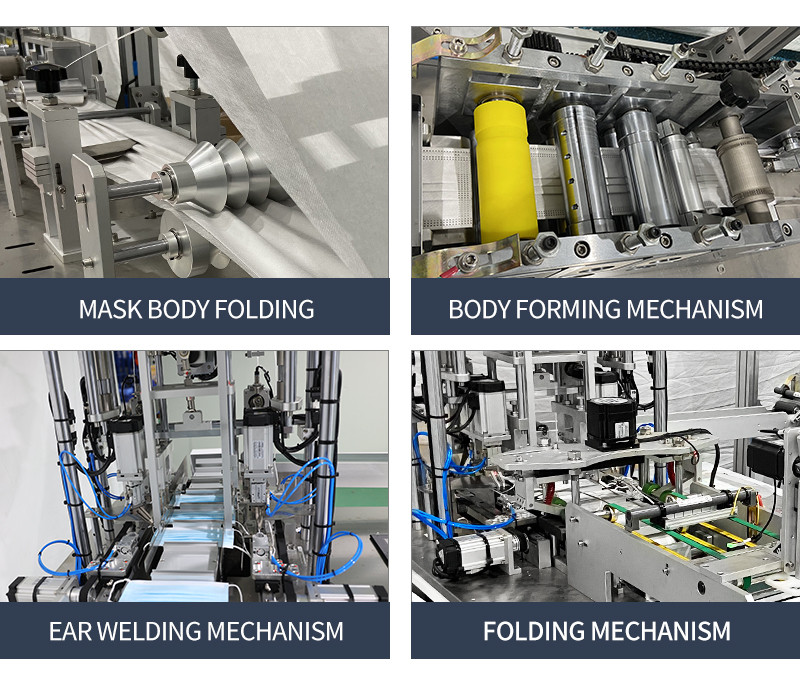

Corrector and shafts can control the fabric position and tension so that the worker can operate easily .
Xinjie Brand PLC and Motors : same brand , the system is more stable
The rack is on the top of the working table to save space and save shipping cost ;
Ear loop folding device can be installed when you need connect with the packing machine ;
Mask size can be adult 175*95mm or kids size 145*95mm , Customized mold can be added your logo .
3ply mask machine
3ply mask machine
3ply mask machine
3ply mask machine
3ply face mask machine
3ply face mask machine
3ply face mask machine
3ply face mask machine

Using PLC programming control, servo control, high degree of automation, high stability, low failure rate, low noise, high output, production efficiency of 70-100PCS/MIN;

lA large number of servos are used to replace the cylinder action, which is efficient and rapid, reducing the impact on the machine;

lUltrasonic welding ear straps, clear embossing, beautiful finished products, hygienic and environmental protection;

lThe whole production line is automatic operation from material feeding, nose line insertion, edge banding and cutting finished products, saving labor efficiently;

lEach action delay and position of the process have adjustable parameters, which can easily adjust the optimal product production line;

lEach process is independent into a module; if a module is not needed, it can be closed independently without re-modifying the program;

lIn automatic mode, it can be paused and started at any time; after the fault is suspended, it can be followed by production.

lPhotoelectric detection of raw materials to avoid mistakes and reduce waste; built-in alarm system, machine fault diagnosis function, system log function, equipment abnormality or lack of materials and its automatic shutdown alarm, screen guidance to quickly handle abnormalities;
