130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
130-160pcs per min 1+1 positioning KF94 fish mask machine with flip device and ear loop folding device .
Model
ZQS-2022

Item specifics

product name
1+1 positioning KF94 mask machine
Marketing Type
New Product 2021
Core Components
PLC
Automatic Grade
Automatic
Voltage
220V
Weight
1800 kg
Warranty
1 year except easy broken parts
After-sales Service
Video technical support, Online support
Production Capacity
130-160pcs per min
Ultrasonic
digital
Digital ultrasonic
15K 4200W/2600W/2000w
Touch Screen
Multi-Language
Selling point
Positioning KF94 masks

Review

Description

1+1 Position KF94 mask machine with waster receyling device
Product Size: Foldable masks in market circulation sizes can be designed according to product drawings;
Material width: Recommended width: 260mm for Children and Adult size , 240mm for kids
Capacity range: 110~130 pieces/minute
Applicable power supply: 220V/380V,50HZ/60HZ
Applicable air source: 0.5∽0.7Mpa
Tourists: 7.5kw
Machine size (mm): Material rack: 2650 x 780 x 1350; body: 2110 x 1072 x 1600; tail end: 1600x 1040 x 1650;
Weight : Weighted in sections, no more than 350KG per section
POSITION KF94
KF94 MASK MACHINE
KF94 MASK MACHINE
KF94 MASK MACHINE

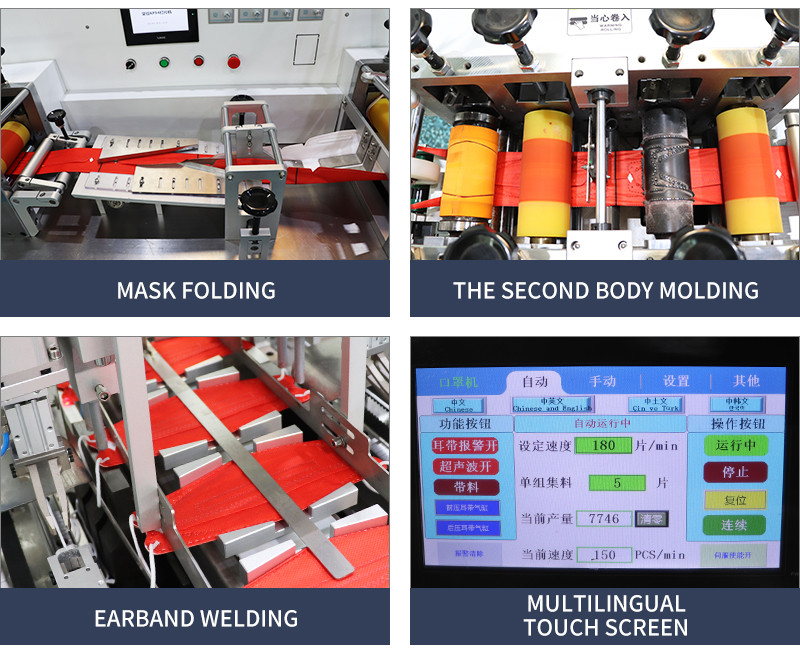

The whole machine by the shelf part, the upper nose line part, the shape of the fusion part, folding molding, shape cutter part, flip part, part of the part, point earband part, collection part, the use of servo motor, ultrasonic welding technology to complete the production.

1. Material frame part: gas expansion shaft, magnetic powder brake with the controller, to ensure that the material tension moderate can not wrinkle;

2. Upper nose line part: cylinder plus ultrasonic welding, the required length specifications of the nose line fixed on the material;

3. Form fusion part: mold with ultrasonic, preliminary pattern welding;

4. Folding molding: folding cloth;

5. Shape cutter part: custom cutter, rolling cut molding, at this time mask initially formed;

6. Flip part: mask turn for earlace preparation;

7. Part: reasonable distribution, increased capacity;

8. Point earband part: mask machine industry-specific rotating disk, with ultrasonic waves earband wire spot welding on the mask semi-finished product, at this time mask molding;

9. Collection part: belt out, product collection;
