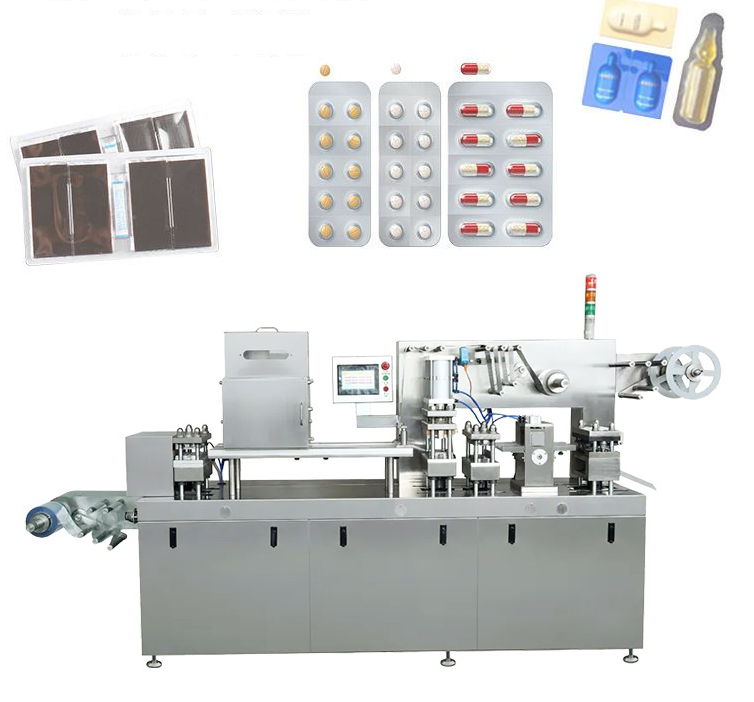

Blister Packing Machine
- Share
- publisher
- Lily Miao
- Issue Time
- May 31,2023
Summary
Blister packing machines are special machines that are used as unit-dose packaging for tablets, capsules, etc.

Mold: 6061 food grade aluminum alloy
Vacuum pump: 63/100 pump
Chassis: 304 stainless steel
Working air pressure:>0.6Mpa
Film width: 330mm/480mm
Maximum size of vacuum chamber: 400x290x50mm/550x390x50mm
Machine dimensions: 1000x1200x1510mm/1200x1300x1560mm
Work efficiency: 360/720 boxes/hour
Machine weight: 350kg
Blister packing machines are special machines that are used as unit-dose packaging for tablets, capsules, etc. The device has a component of a bubble pack that may be a cavity or pocket made up of a formable film, usually a thermoformed plastic or cold-formed aluminum film. This usually features a lidding seal of aluminum foil.
In other words, this is an electromechanical machine that has both moving and stationary parts that aid in packaging and sealing products in pre-formed cavities.
The mechanical movements facilitate the formation of sized cavities on packaging material, filling, and sealing with appropriate materials.
Using different packaging materials and principles of forming, Blister Packs could also be divided into three types:aluminum/plastic (thermoforming) bubble pack, aluminum/aluminum (cold forming) bubble pack, and aluminum/plastic/aluminum bubble pack.
